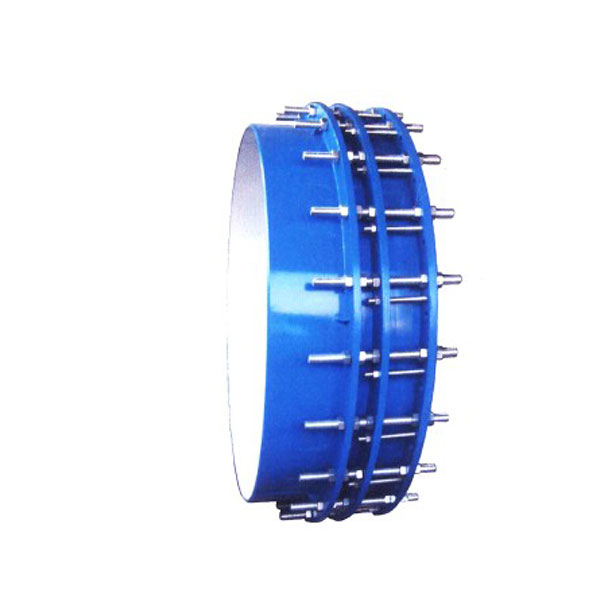

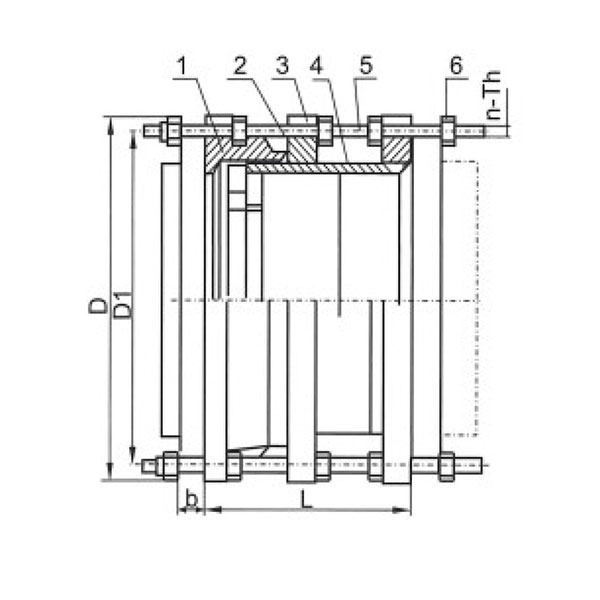

Single Flange Force Transmission Compensation Joint
Features
▪ The loose sleeve force transmission joint is composed of a flange loose sleeve expansion joint, a short pipe flange, a force transmission screw and other components.
▪ The short pipe has a certain amount of expansion and contraction displacement. During installation and maintenance, adjust it according to the site installation size. In normal work , it can transmit the axial thrust to the entire pipeline. This not only improves work efficiency, but also protects equipment such as pumps and valves.

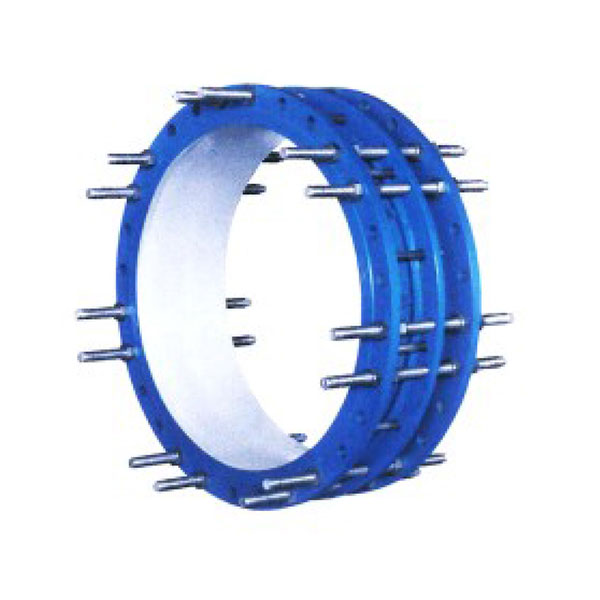

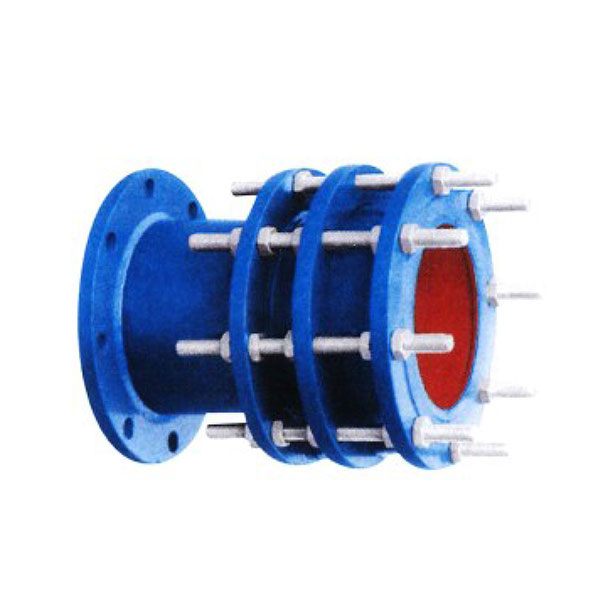

Double Flange Force Transmission Compensation Joint
Features
▪ The double-flange force transmission joint has short structure, reasonable design, reliable sealing, convenient installation and unloading.
▪ Can compensate the axial displacement of the pipeline and transmit the axial push-pull force within a certain range.
▪ Has the functions of adjusting the maximum expansion and contraction and preventing the loosening of the connection pipe.
▪ Used to instead of expansion joints such as U-shaped pipes and corrugated pipes, and is an ideal solution to problems such as pipeline installation and expansion.

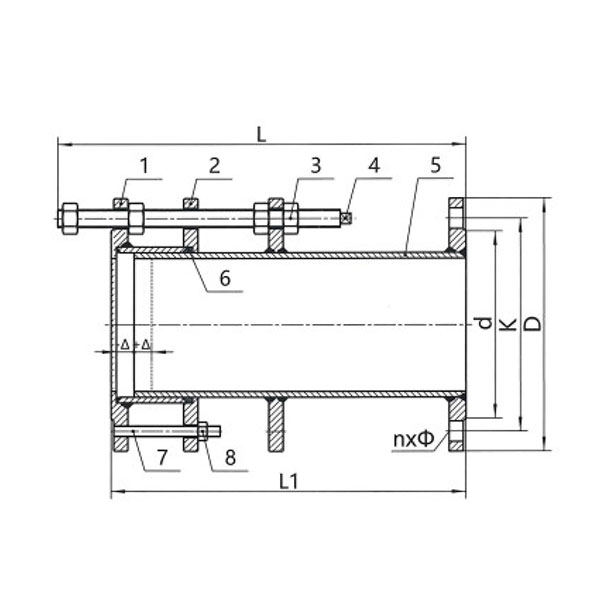

Structure

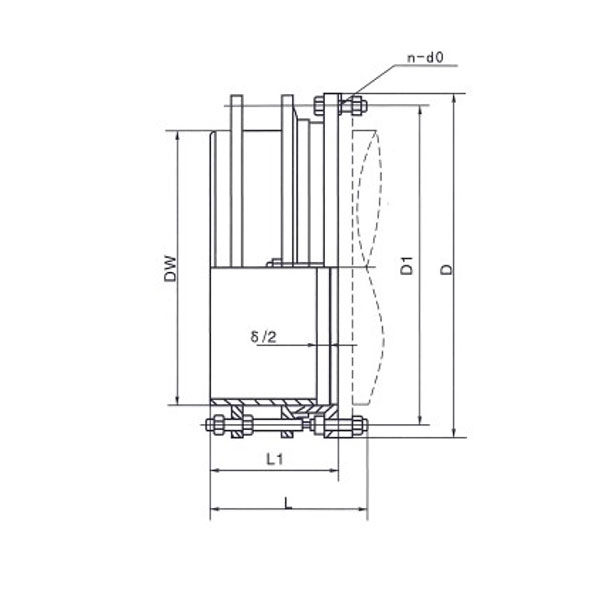

Detachable Double Flange Loose Sleeve Force Transmission Compensation Joint
