Introduction
Ball valves are widely used in fluid systems for their reliability and versatility. This article examines their advantages, compares them with other valve types, and discusses their characteristics and applications.

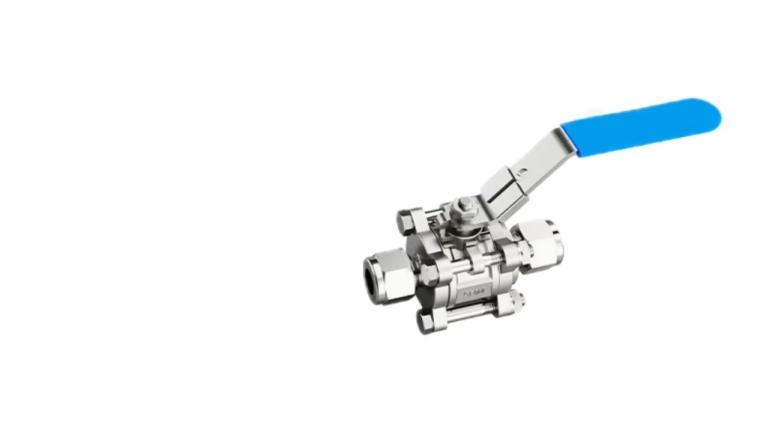

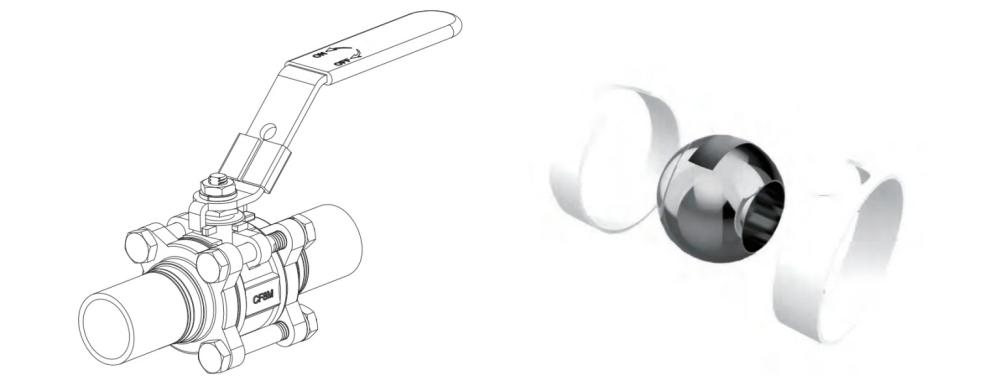

1- Internal Structure of Ball Valve
Featuring an uncomplicated design with five core components (body, ball, stem, seats, bracket), ball valves offer manufacturing simplicity and maintenance convenience that translate into substantial lifecycle cost savings.
Valve body: Material: usually made of cast steel, stainless steel, plastic and other materials, with good corrosion resistance and strength.
Function: constitutes the outer shell structure of the valve and supports the internal components.
Valve ball: Shape: spherical structure, usually made of metal or plastic.
Function: Control the flow of fluid by rotating 90 degrees.
Valve stem: Connection method: Linking valve ball and external actuator.
Function: Driving the valve ball to open and close through rotational motion.
Sealing ring: Material: usually made of polytetrafluoroethylene (PTFE), rubber and other materials.
Function: to ensure the sealing of the valve when it is closed and effectively prevent fluid leakage.
Bracket: Function: Provide rigid support for the valve ball and valve stem to ensure stable operation and smooth movement.
2- Features
Quick opening and closing characteristics
- Operation principle: The ball valve only needs 90 degrees of rotation to complete the opening and closing action, and the quick opening and closing operation can be achieved by turning the valve stem, which has the significant advantages of simple operation and quick response.
Low flow resistance characteristics
- Structural advantages: The spherical valve body design of the ball valve makes the fluid flow with minimal resistance and excellent flow capacity.
Performance: This feature makes the ball valve perform well under high flow conditions and can significantly improve the system operation efficiency.
Excellent sealing performance
- Sealing form: hard seal or soft seal structural design.
Technical advantages:
• Provide industry-leading sealing level.(in compliance with ISO 15848-1 CC1 standard)
• Maintain zero leakage under extreme working conditions. (test pressure ≥ 1.1 times nominal pressure)
Application value: Especially suitable for industrial fields with strict safety requirements such as petrochemicals, nuclear power, etc.
Wear-resistant properties
- Performance: The ball valve has excellent wear resistance and can maintain an ultra-long service life even with frequent opening and closing operations.
3- Function
low control: can effectively regulate fluid flow, suitable for all kinds of fluid media.
Safety protection: prevent fluid backflow and ensure system operation safety.
Regulation function: can be used for flow regulation under specific working conditions. (but the main function is still on-off control)
Differences from Other Valves
Comparison of Valve Types：
–Ball Valve vs. Gate Valve
Switch Speed: Ball valves can open and close rapidly, whereas gate valves typically require multiple rotations, resulting in slower operation.
Fluid Resistance: Ball valves offer minimal flow resistance, while gate valves still exhibit some resistance even when fully open.
–Ball Valve vs. Plug Valve
Operation Mechanism: Plug valves control flow by rotating a cylindrical plug with a circular bore, resulting in relatively slower opening/closing speeds.
In contrast, ball valves utilize a rotating sphere (also with a circular bore) for flow control, enabling rapid operation (90-degree rotation suffices).
Sealing Performance: Ball valves provide excellent sealing, making them suitable for high-pressure/high-temperature (HPHT) environments.Plug valves offer moderate sealing and are typically applied in low-pressure systems.
–Ball Valve vs. Butterfly Valve
Sealing Performance: Ball valves generally provide superior sealing compared to butterfly valves, particularly in high-pressure and high-temperature (HPHT) applications.
Application Scope: Ball valves offer wider media compatibility, whereas butterfly valves are primarily used for gases and low-viscosity liquids.
–Ball Valve vs. Globe Valve
Flow Regulation: Globe valves are suitable for precise flow control, while ball valves are better suited for quick on/off operation.
Wear Resistance: Ball valves exhibit superior performance and wear resistance under high-frequency cycling conditions.
Powerful Functions
Flow Control: Ball valves enable precise fluid flow regulation, making them ideal for applications requiring adjustable flow rates.
On/Off Function: As a flow control device in fluid systems, ball valves allow rapid opening/closing of fluid passages, ensuring flexible system operation.
Backflow Prevention: Certain ball valve designs incorporate backflow prevention to maintain system safety and avoid operational incidents.
Wide Range of Application Fields
Ball valves are widely used across various industries, primarily including:
Chemical Industry: In chemical production processes, ball valves are employed to regulate fluid flow, ensuring process safety and operational efficiency.
Oil & Gas: During the extraction, transportation, and storage of petroleum and natural gas, ball valves serve a pivotal function in maintaining uninterrupted fluid transmission.
Water Treatment: Within water treatment systems, ball valves modulate and redirect flow to ensure water quality compliance.
Pharmaceutical Industry: In pharmaceutical manufacturing operations, ball valves guarantee fluid system integrity and hygienic conditions, meeting stringent regulatory standards (e.g., ASME BPE, FDA requirements).
Conclusion
Ball valves have become an indispensable component in fluid systems due to their simple structure, excellent performance, and wide applicability. Compared to other valve types, ball valves demonstrate significant advantages in operation speed, flow resistance, and sealing performance. Across industries—whether in petrochemical plants, oil/gas fields, or water treatment facilities—ball valves play a critical role. These superior characteristics have made ball valves the preferred choice for fluid control, earning widespread adoption across diverse sectors.
