Introduction to Metal Gasket Face Seal Fittings
Metal Gasket Face Seal Fittings
Metal gasket face seal fittings are critical components in various industries where leak prevention is crucial. A standard assembly includes glands, sealing rings, female connectors, and male connectors. Additional components may consist of housings, caps, plugs, flow control inserts, and securing mechanisms.
Key Benefits of Metal Gasket Face Seal Fittings
A. Reusability & Cost Efficiency
The compressed metal gasket does not harm the gland’s sealing surface, allowing multiple reassemblies with just a gasket replacement, reducing upkeep expenses.
B.No dead zone, no residue and Easy Cleaning
The design ensures complete gas purging, preventing contamination risks from trapped residues.
C. Simple Installation & Removal
Standard tools are sufficient for assembly and disassembly, enhancing operational and servicing speed.

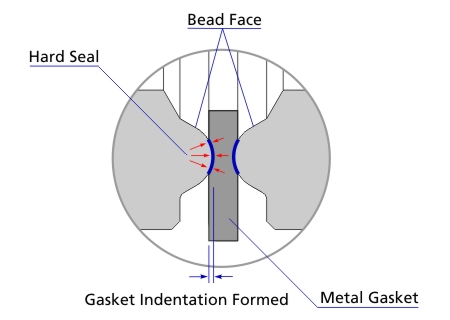

D.Metal-to-metal hard seal, good sealing performance
Tightening the connector compresses the gasket between two glands, creating a secure seal through slight deformation, ensuring leak-proof performance.
Installation Guide

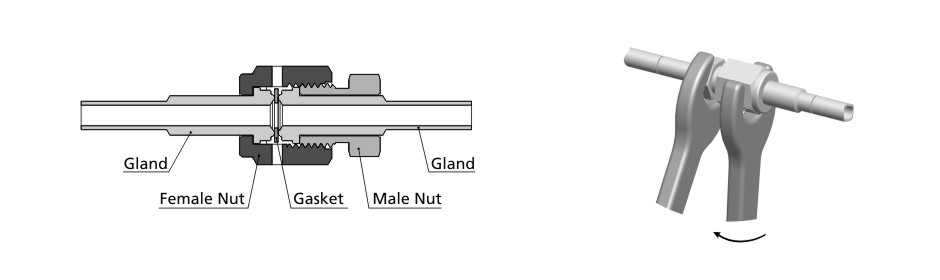

1.Align the gland, nut, gasket, and female/male nut as below. Hand-tighten the nut.
2.For 316L stainless steel & nickel gaskets, rotate the fastener 1/8 turn with a tool while stabilizing the fitting. For copper gaskets, tighten 1/4 turn.
Custom Solutions for Diverse Needs
These fittings offer adaptable designs for high-pressure systems, cryogenic environments, and specialized materials. At TSSLOK, we deliver tailored solutions and expert support to meet unique requirements, ensuring long-term value. For inquiries, reach out to our team for prompt assistance.
